Data Collection, Graphing Utility, Ready For Industry 4.0
Supports up to 6 coordinated axis and a spindle.

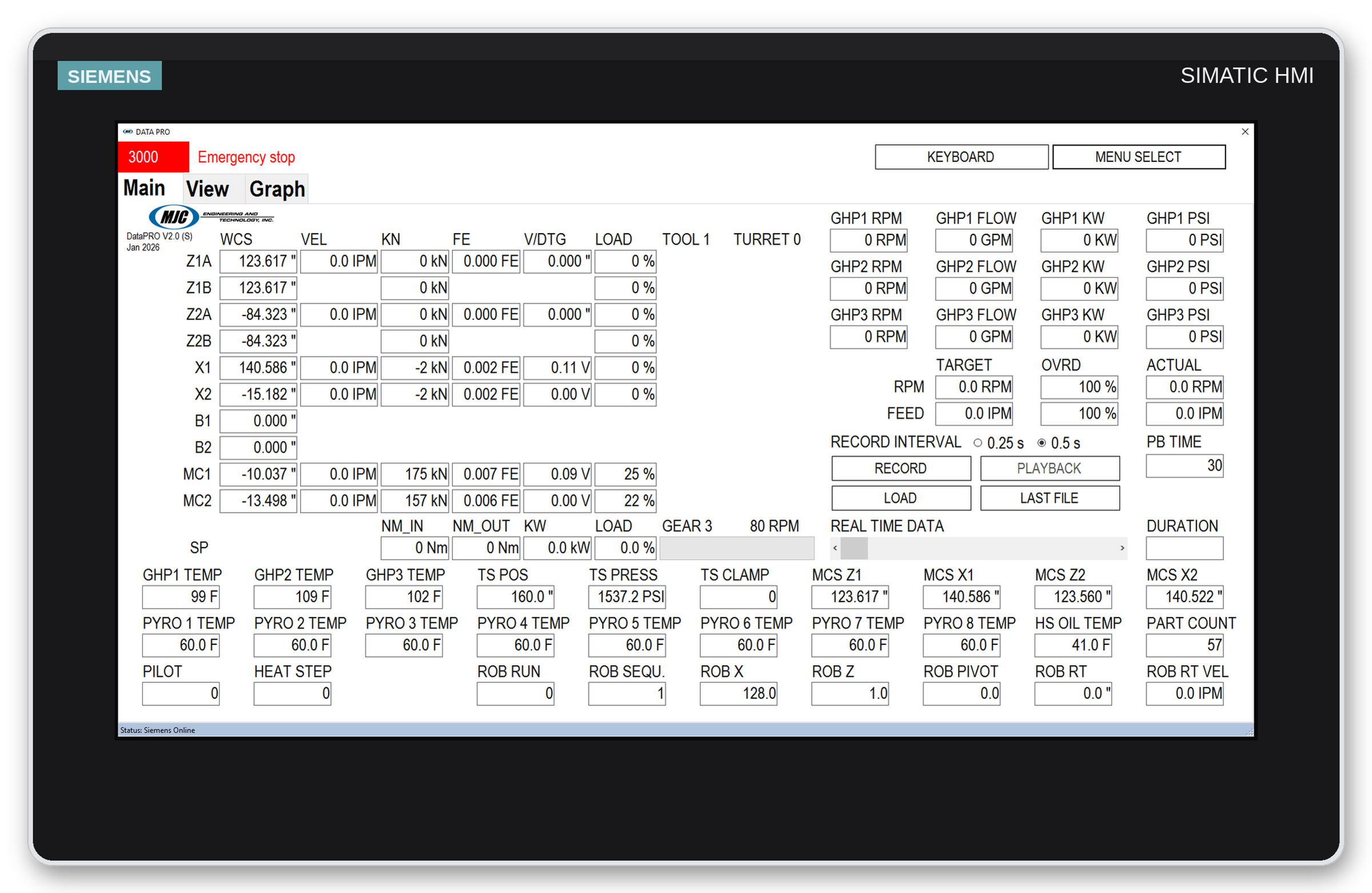

Monitor data points: positions, speeds, forces (kN), voltage, kilowatt, load (%), temperatures, pressures, and optionally 6 customized data fields
Up to 50 data points can be saved every half-second or quarter-second.
Automatically records data points on cycle start, or on command, and can playback saved records.

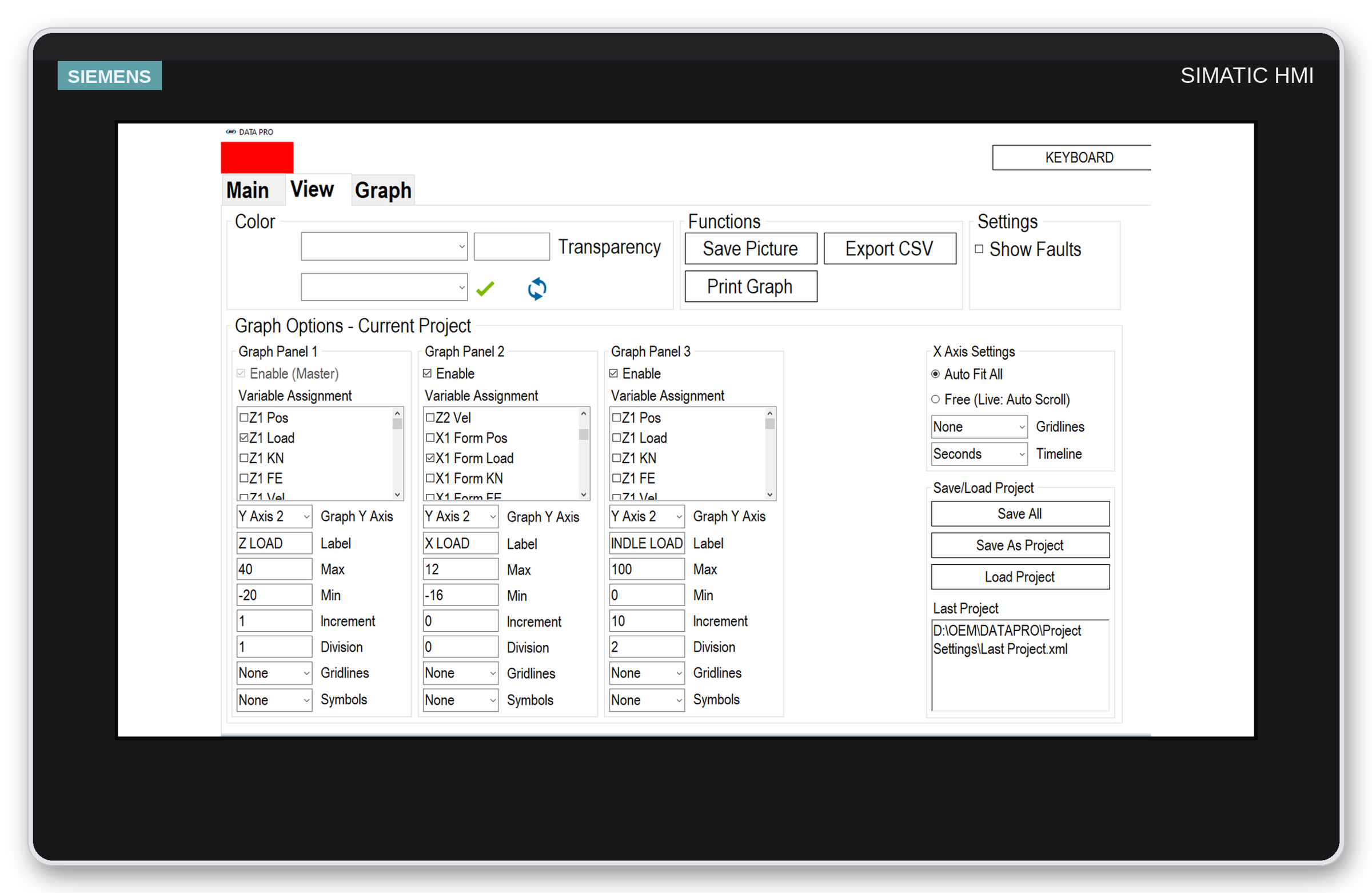

Comprehensive graphing utility that can show 4 graphs on screen at one time, and event lines display recorded values.
Data Collection, Graphing Utility, Ready For Industry 4.0
Supports up to 6 coordinated axis and a spindle.
Monitor data points: positions, speeds, forces (kN), voltage, kilowatt, load (%), temperatures, pressures, and optionally 6 customized data fields
Up to 50 data points can be saved every half-second or quarter-second.
Automatically records data points on cycle start, or on command, and can playback saved records.
Comprehensive graphing utility that can show 4 graphs on screen at one time, and event lines display recorded values.
• Save 50 data points every 0.5 or 0.25 seconds.
• Runs in the background of the CNC.
• Save and print data sets.
• Comprehensive graph utility.
