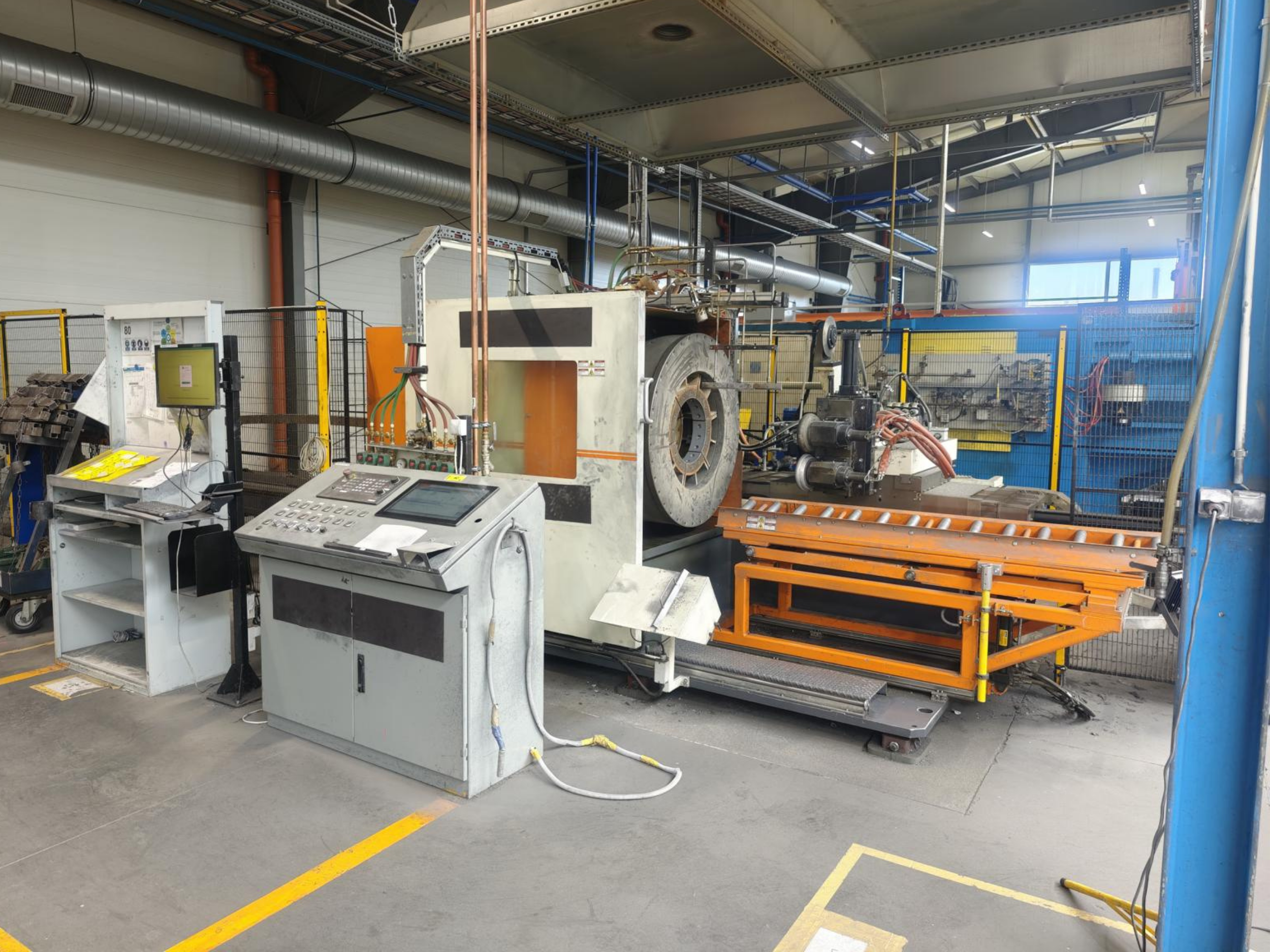

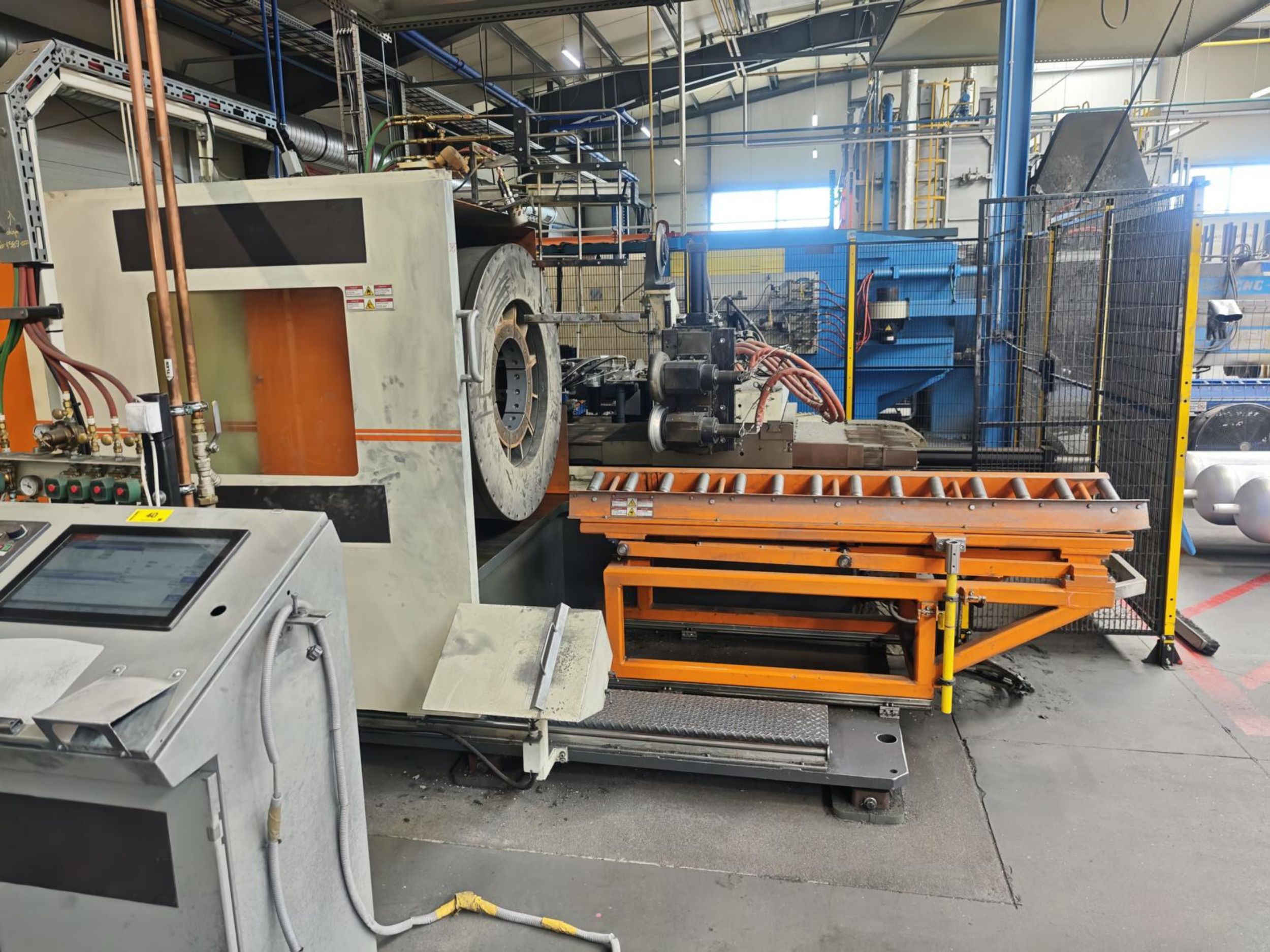

SPT-26.150 | Pre-Owned (2023) | Ready for Production

$0.00

An aluminum liner spinning machine is a specialized piece of equipment designed for forming aluminum liners, which are typically used as the inner shells of composite pressure vessels, such as gas cylinders or tanks. The machine employs the metal spinning process, where a flat or cylindrical aluminum blank is gradually shaped into the desired liner form through high-speed rotation and controlled tooling

An aluminum liner spinning machine is a specialized piece of equipment designed for forming aluminum liners, which are typically used as the inner shells of composite pressure vessels, such as gas cylinders or tanks. The machine employs the metal spinning process, where a flat or cylindrical aluminum blank is gradually shaped into the desired liner form through high-speed rotation and controlled tooling


MAXIMUM CAPACITY

Diameter Range: 275-660 mm

Maximum Tube length 4000 mm

Maximum Wall Thickness 15 mm

MACHINE DATA

Spindle Drive AC Vector: 150 kW

Max. Spindle Speed: 400 Rpm

Z-axis speed: 0-125mm/sec

Z-axis force: 70kN

X-axis speed: 0-125mm/sec

X-axis force: 70kN

Chucking System Spring Chuck

Clamping force 190kN

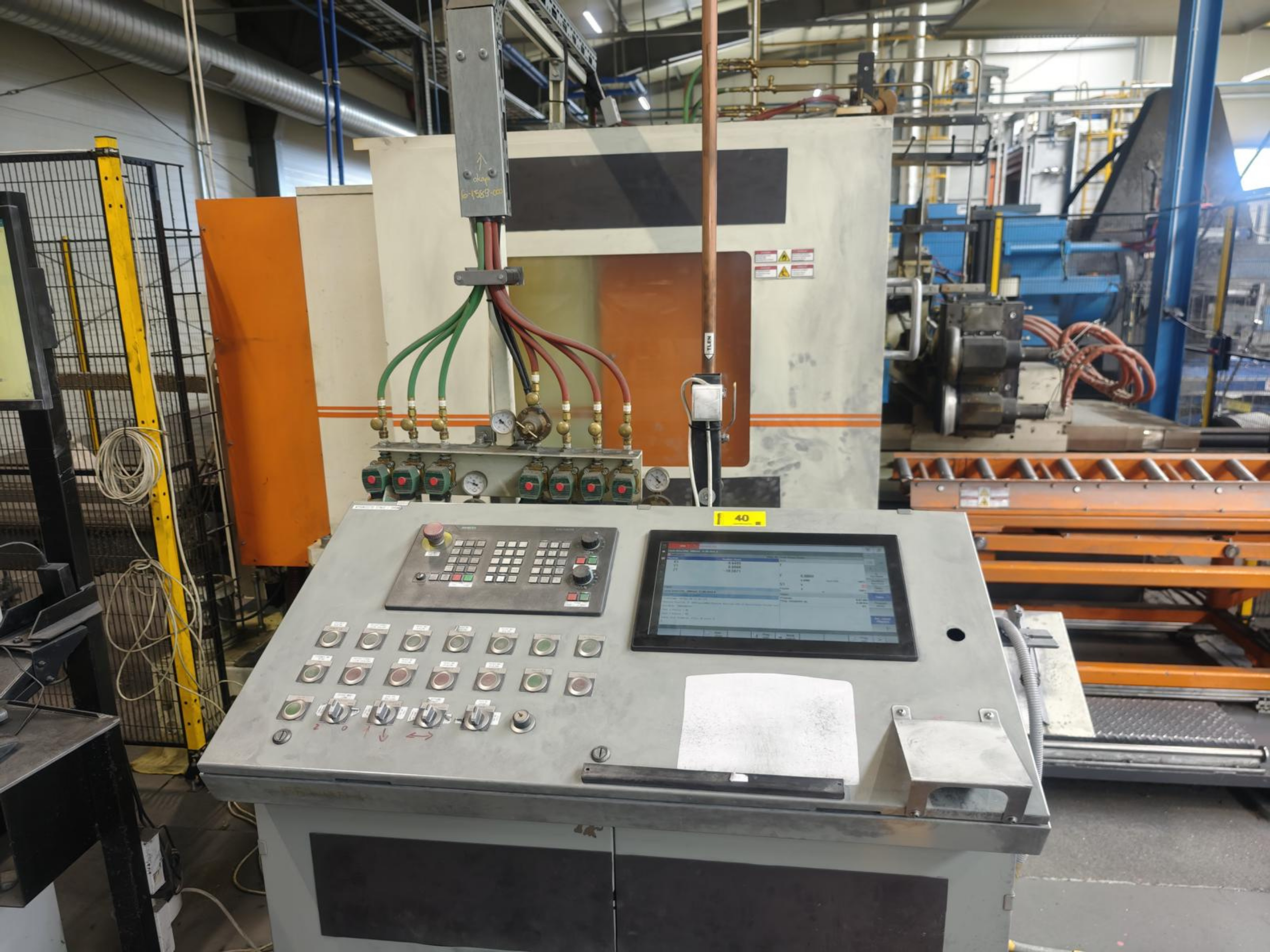

CNC Control System: Siemens

Programming Software: MJC Software Suite
