SPV-2020

$0.00

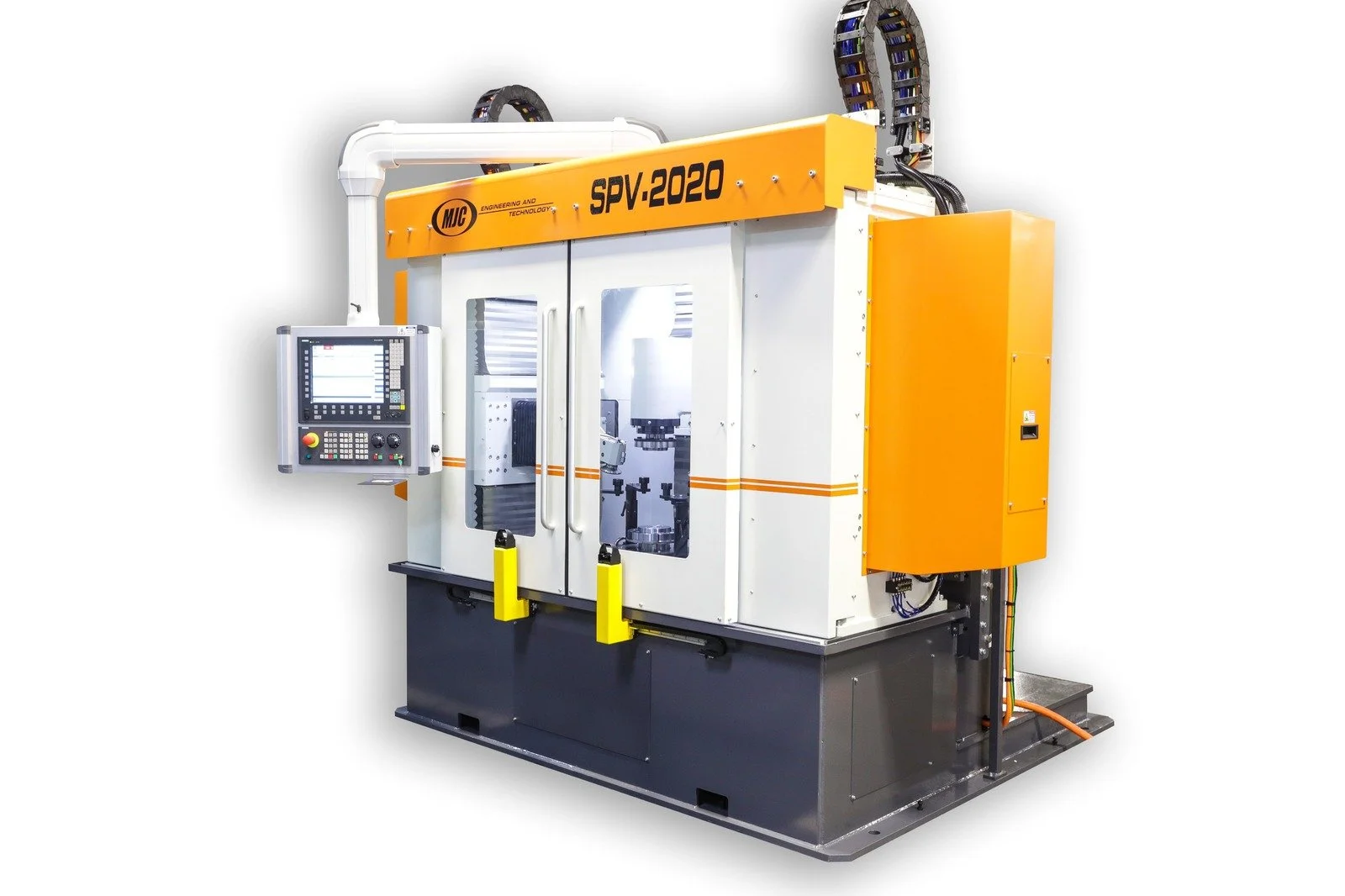

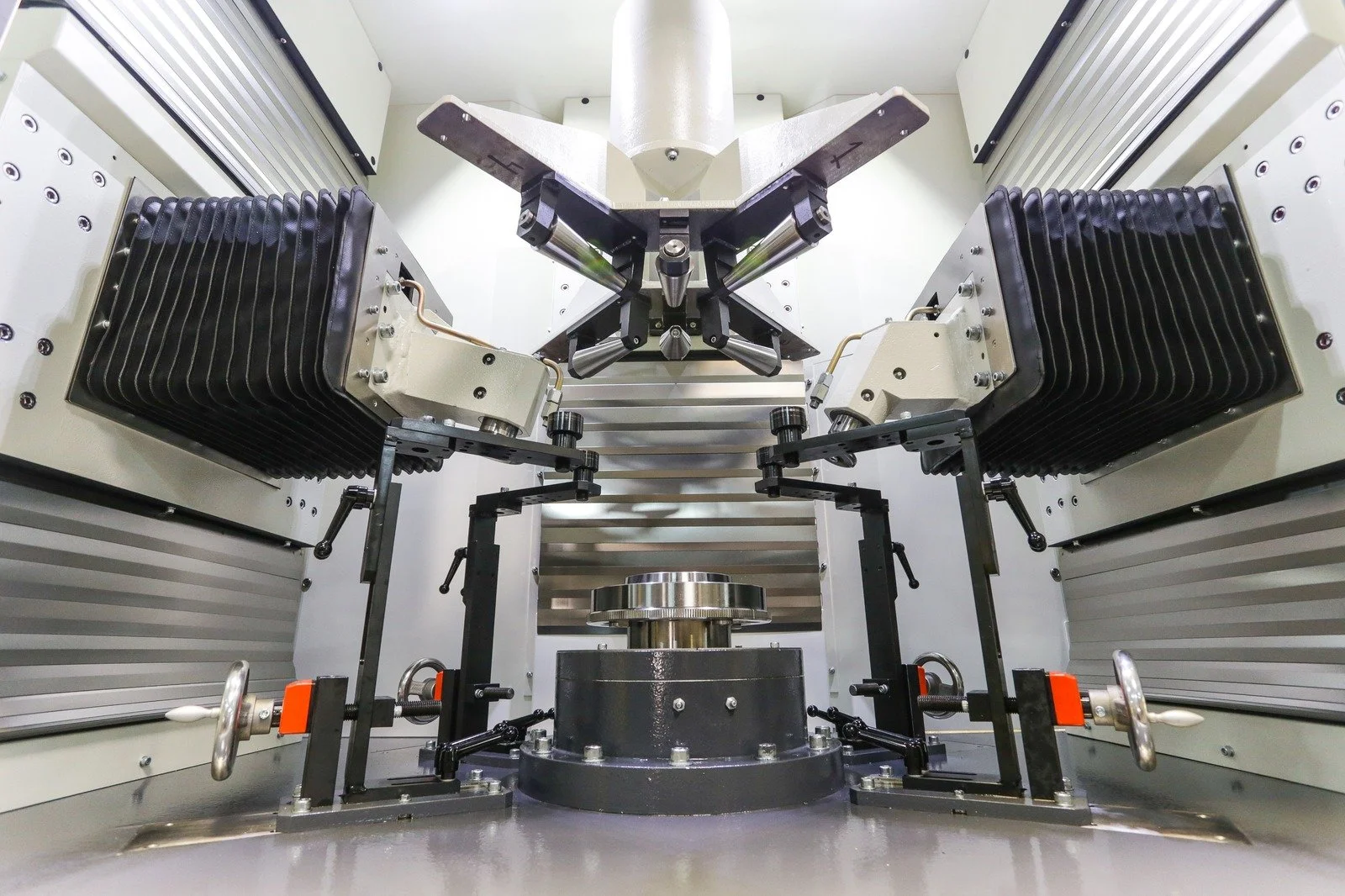

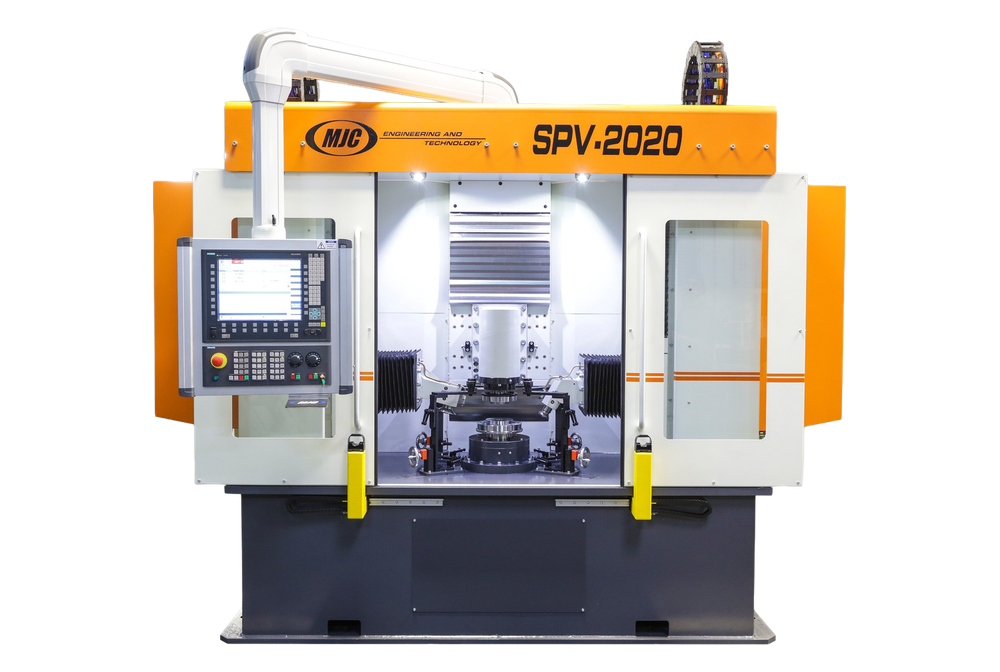

The SPV-20.20 is a vertical CNC spinning machine for disc blanks up to 508 mm. The spindle runs vertical and the blank sits flat on the chuck, so the machine holds a smaller floor footprint than a horizontal machine of the same capacity and the operator loads at waist height rather than reaching into the work envelope.

It is built to the same standard as the rest of the SP range: tight tolerances, repeatable geometries and clean surface finishes, with Siemens Sinumerik One control and the full MJC Software Suite

The SPV-20.20 is a vertical CNC spinning machine for disc blanks up to 508 mm. The spindle runs vertical and the blank sits flat on the chuck, so the machine holds a smaller floor footprint than a horizontal machine of the same capacity and the operator loads at waist height rather than reaching into the work envelope.

It is built to the same standard as the rest of the SP range: tight tolerances, repeatable geometries and clean surface finishes, with Siemens Sinumerik One control and the full MJC Software Suite

MAXIMUM CAPACITY

Max. Blank Diameter: 800 mm

MACHINE DATA

Spindle Drive AC Vector: 17 kW

Standard Spindle Speed Range: 400-2000 Rpm

Tailstock Stroke: 400 mm

Tailstock Force: 10 kN

X1-X2-axis Stroke: 250 mm

X1-X2-axis Force: 25 kN

Z1-Z2-axis Stroke: 450 mm

Z1-Z2-axis Force: 25 kN

CNC Control System: Siemens Sinumerik One

Programming Software: MJC Software Suite
