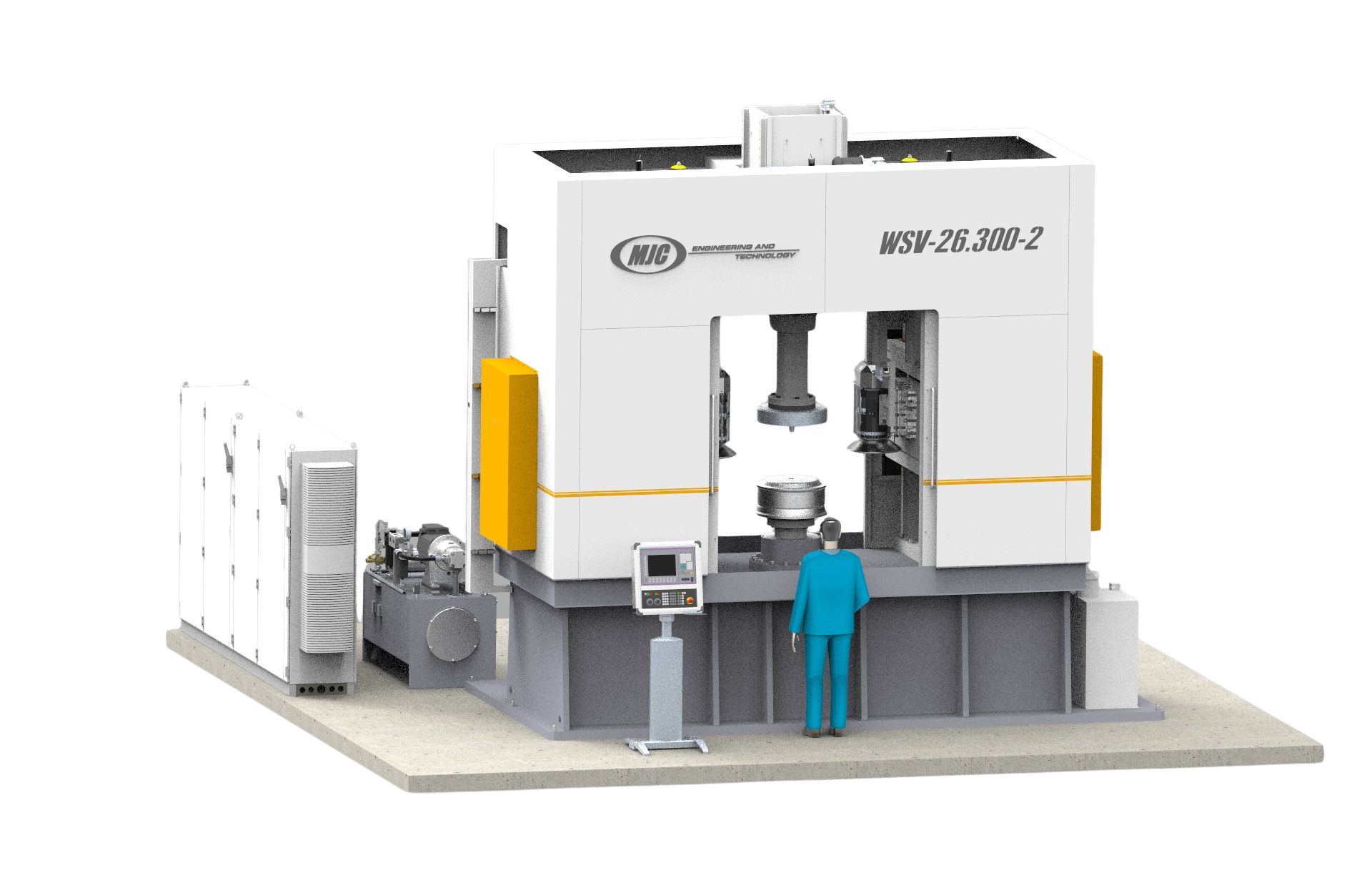

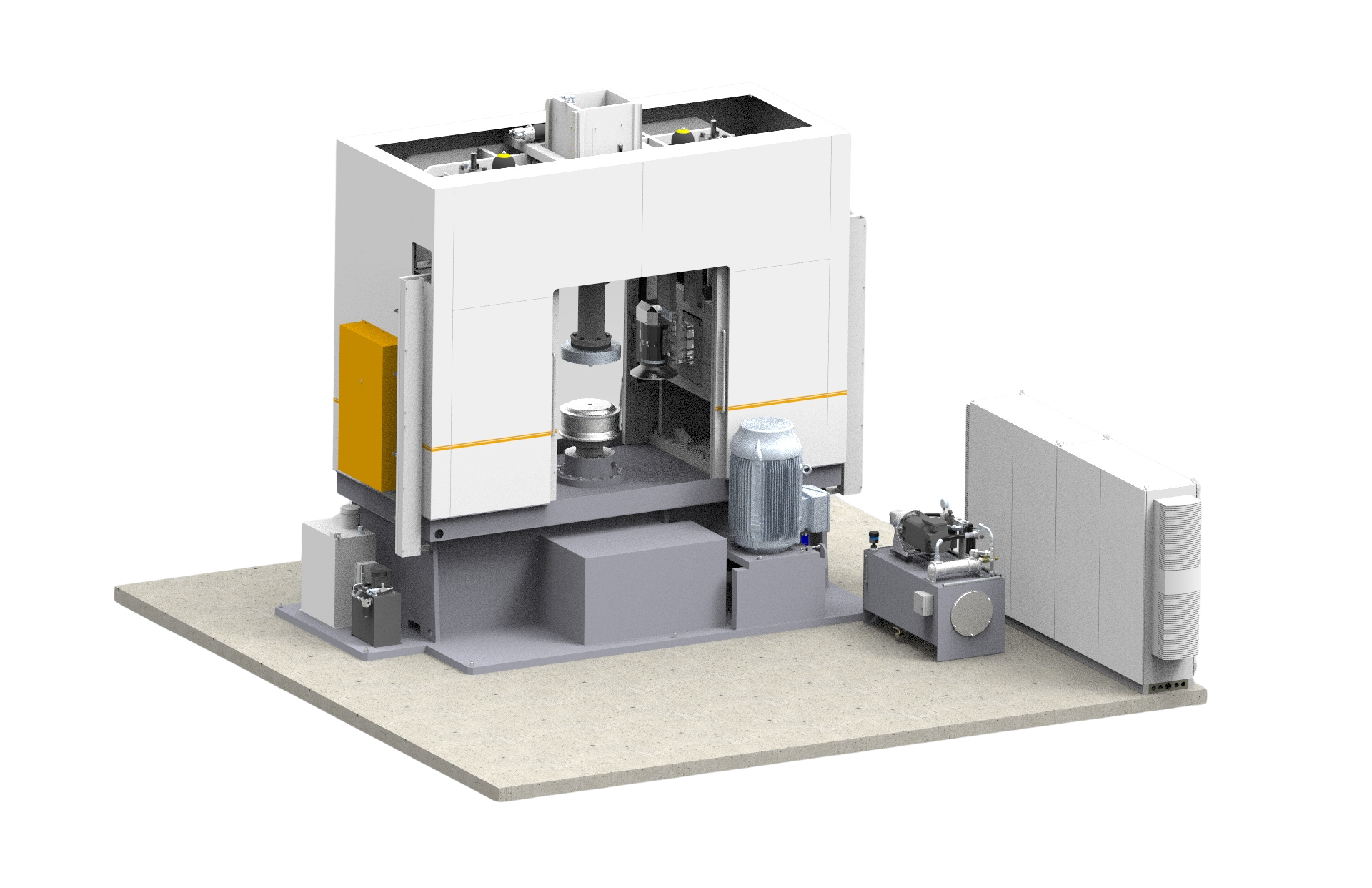

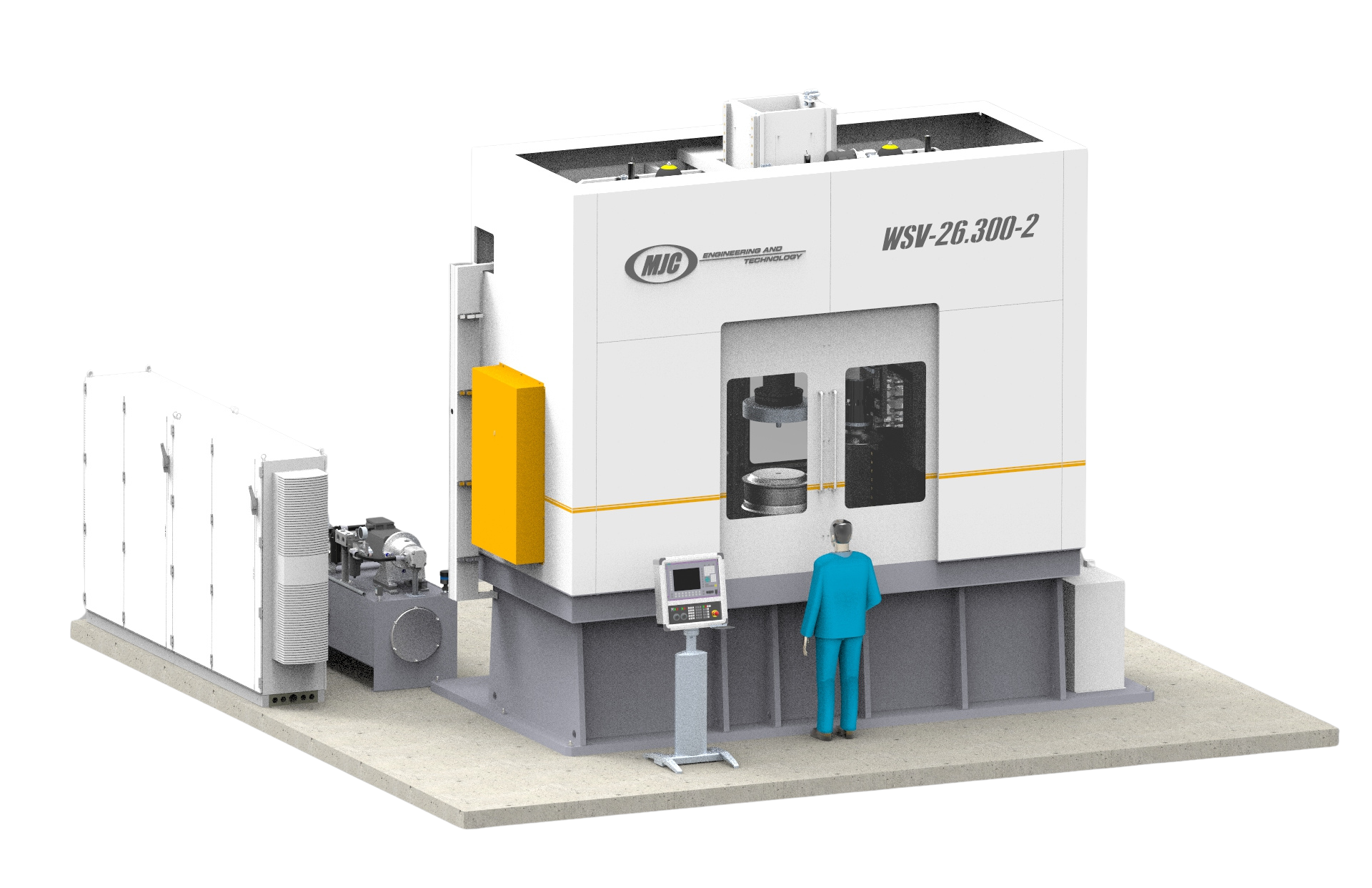

WSV 26-300-2
MJC “WSV” CNC Wheel forming machines are specially designed for the manufacturing of a wide variety of Aluminum wheels.
MJC uses the latest technology available and standard components, which ensures the highest productivity while keeping maintenance and cost of ownership the
lowest in the world. MJC customers benefit from the best service and support in the industry through locally authorized service centers.
MJC “WSV” CNC Wheel forming machines are specially designed for the manufacturing of a wide variety of Aluminum wheels.
MJC uses the latest technology available and standard components, which ensures the highest productivity while keeping maintenance and cost of ownership the
lowest in the world. MJC customers benefit from the best service and support in the industry through locally authorized service centers.
MJC “WSV” CNC Wheel forming machines are specially designed for the manufacturing of a wide variety of Aluminum wheels.
MJC uses the latest technology available and standard components, which ensures the highest productivity while keeping maintenance and cost of ownership the
lowest in the world. MJC customers benefit from the best service and support in the industry through locally authorized service centers.
Max. Rim Diameter: 762 mm
Max. Rim width 500 mm
MACHINE DATA
Spindle Drive AC Vector: 333 kW
Standard Spindle Speed Range: 100-600 Rpm
Spindle Mounting: DIN #15
Tailstock Stroke: 600 mm
Tailstock Force: 375 kN
X1-X2-axis Stroke: 250 mm
X1-X2-axis Force: 310 kN
Z1-Z2-axis Stroke: 750 mm
Z1-Z2-axis Force: 375 kN
CNC Control System: Siemens Sinumerik One
Programming Software: MJC Software Suite
